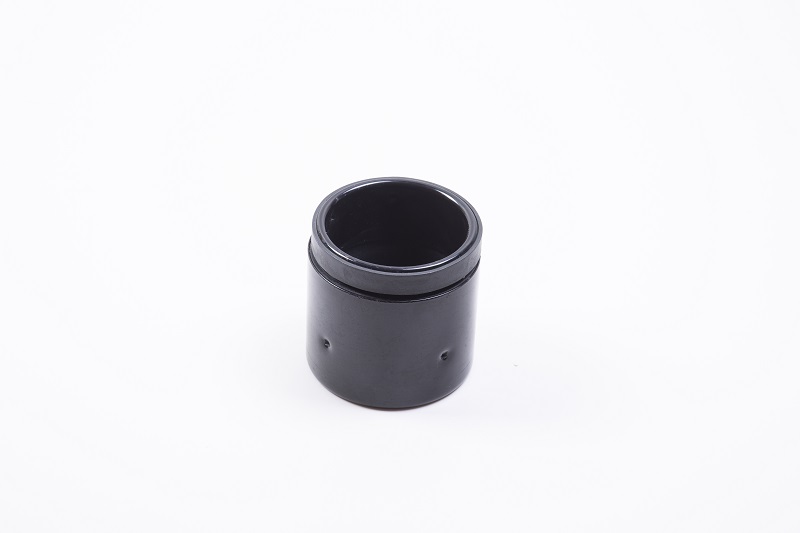

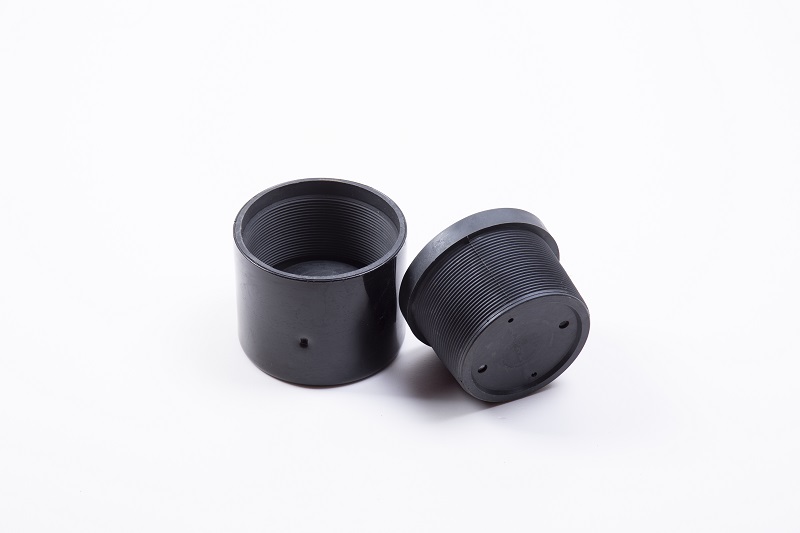

5 1/2“LTC casing pipe metal plastic thread protector:

PRODUCT STRUCTURE:

Steel is crimped into the plastic bushing ,and then thread will be processed with CNC machine.

Inquire Now Next Product

product description

MATERIAL:

Steel、HDPE

PRODUCT STANDARD:

Metal plastic thread protector for Oil pipe and casing pipe is according to API Q1 standard, basing on the API 5CT Annex I specifications.

PRODUCT TEMPERATURE:

-46C-66C

PRODUCT APPLICATION:

Metal plastic thread protector for Oil pipe and casing pipe is used for protecting threads of oil casing, oil pipe and drilling tools, the purpose is to prevent the thread from being damaged during loading, unloading, transportation and storage.

Drill Pipe Thread Protectors Lists

Item	Size&Thread	ALL Plastic	Steel Plastic
1	1.9”NU	√	√
2	1.9”EU	√	√
3	2-3/8”NU	√	√
4	2-3/8”EU	√	√
5	2-7/8”NU	√	√
6	2-7/8”EU	√	√
7	3-1/2”NU	√	√
8	3-1/2”EU	√	√
9	4-1/2”NU	√	√
10	4-1/2”EU	√	√
11	4-1/2”LTC	√	√
12	4-1/2”BTC	√	√
13	5”LTC		√
14	5”STC		√
15	5”BTC		√
16	5-1/2”LTC	√	√
17	5-1/2”BTC	√	√
18	6-5/8”LTC		√
19	6-5/8”BTC		√
20	6-5/8”OTTM		√
21	7”LTC	√	√
22	7”STC	√	√
23	7”BTC	√	√
24	7-5/8”BTC		√
25	7-5/8”LTC		√
26	8-5/8”STC		√
27	8-5/8”LTC		√
28	8-5/8”BTC		√
29	9-5/8”LTC	√	√
30	9-5/8”BTC	√	√
31	10-3/4”STC		√
32	10-3/4”BTC		√
33	11-3/4”BTC		√
34	11-3/4”LTC		√
35	12-3/4”BTC		√
36	13-3/8“STC		√
37	13-3/8”BTC		√
38	16”BTC		√
39	16”STC		√
40	18-5/8”BTC		√
41	18-5/8”STC		√
42	20”BTC		√
43	20”STC		√
We can also process special threads according to customers'requirements.

5 1/2“LTC casing pipe metal plastic thread protector
