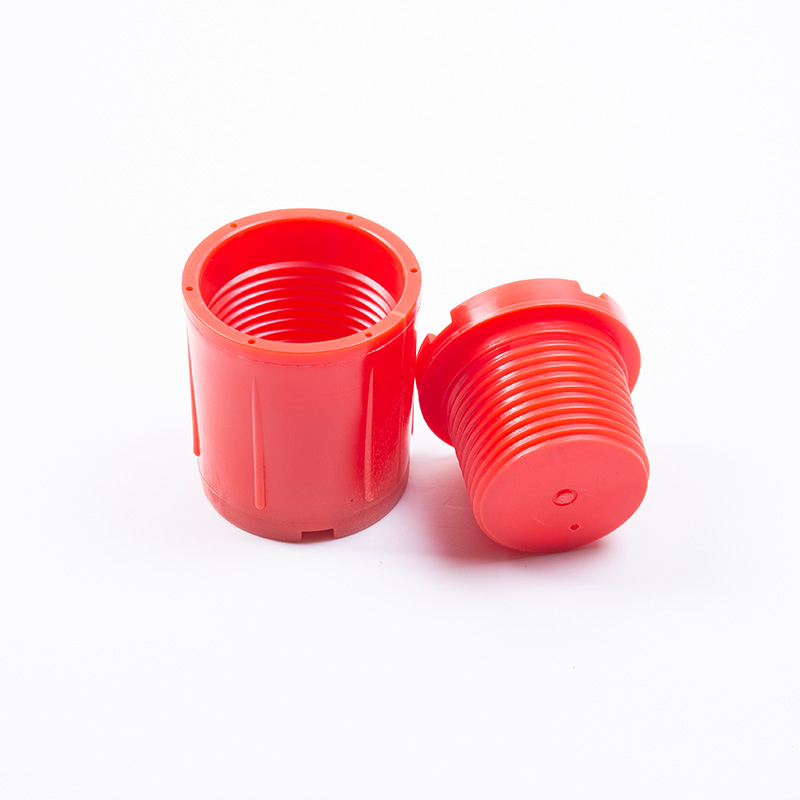

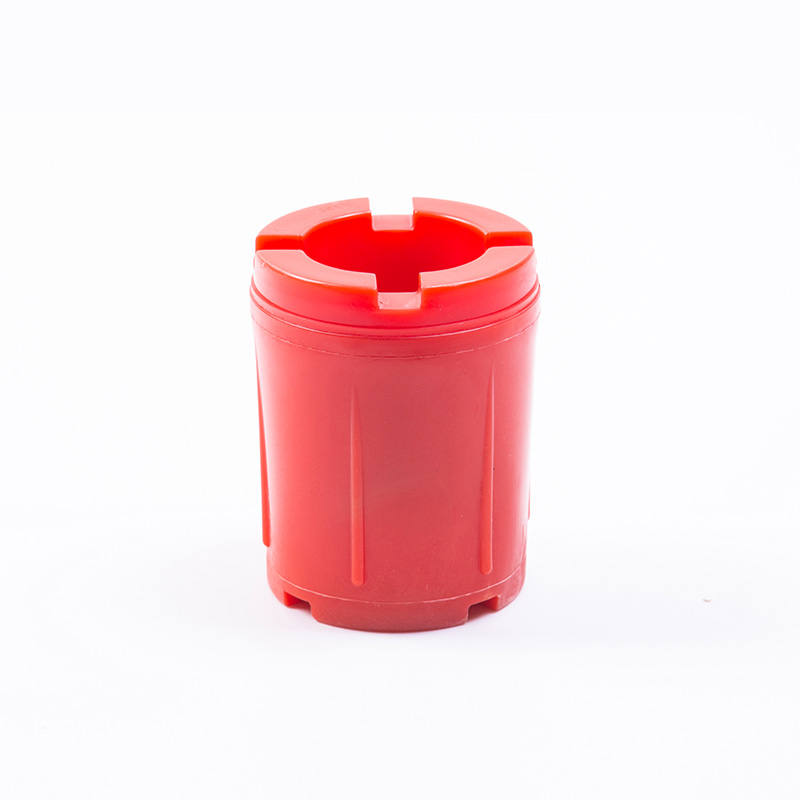

XT39 PIN&BOX FULL PLASTIC DRILL PIPE THREAD PROTECTOR:

PRODUCT APPLICATION:

XT39 PIN&BOX FULL PLASTIC DRILL PIPE THREAD PROTECTORS are used for protecting the thread of drill pipes, drill collars, drill subs and other drilling tools.

Inquire Now Next Product

product description

MATERIAL:

HDPE、steel

DIAMETER RANGE:

from 2 3/8” to 8 5/8”

QUALITY CONTROL:

4 1/2" IF PIN&BOX full plastic drill pipe thread protector is according to API Q1 standard, basing on the API 5CT Annex I specifications.

THREAD TYPE:

NC、REG、IF、FH、DSTJ、VX、VF、HT、PAC

Item	Size&Thread	All Plastic	Composite type ASM(CEL)	Composite type ASM(CENL)
1	NC23		√
2	NC26	√	√	√
3	NC26 DSTJ
4	NC31	√	√	√
5	NC31 DSTJ
6	NC35	√	√
7	NC38	√	√	√
8	NC38 DSTJ	√	√	√
9	NC40	√	√	√
10	NC40 DSTJ	√	√	√
11	NC44	√	√
12	NC46	√	√	√
13	NC50	√	√	√
14	NC50 DSTJ	√	√	√
15	NC52	√	√
16	NC56	√	√
17	NC61	√	√
18	NC70	√	√
19	5 1/2" FH	√	√	√
20	5 1/2" FH DSTJ	√	√	√
21	6 5/8" FH	√	√
22	6 5/8"IF	√
23	2 3/8" REG	√	√	√
24	2 7/8" REG	√	√	√
25	3 1/2" REG	√	√	√
26	4 1/2" REG	√	√	√
27	6 5/8" REG	√	√	√
28	7 5/8" REG	√	√	√
29	8 5/8" REG	√	√	√
30	2 7/8" PAC	√	√
31	2 3/8" PAC		√
32	4 1/2" H-90	√	√
33	5"H90	√	√
34	6 5/8"H-90	√	√
35	7 5/8"H-90	√	√
We can also process special threads according to customers'requirements.
